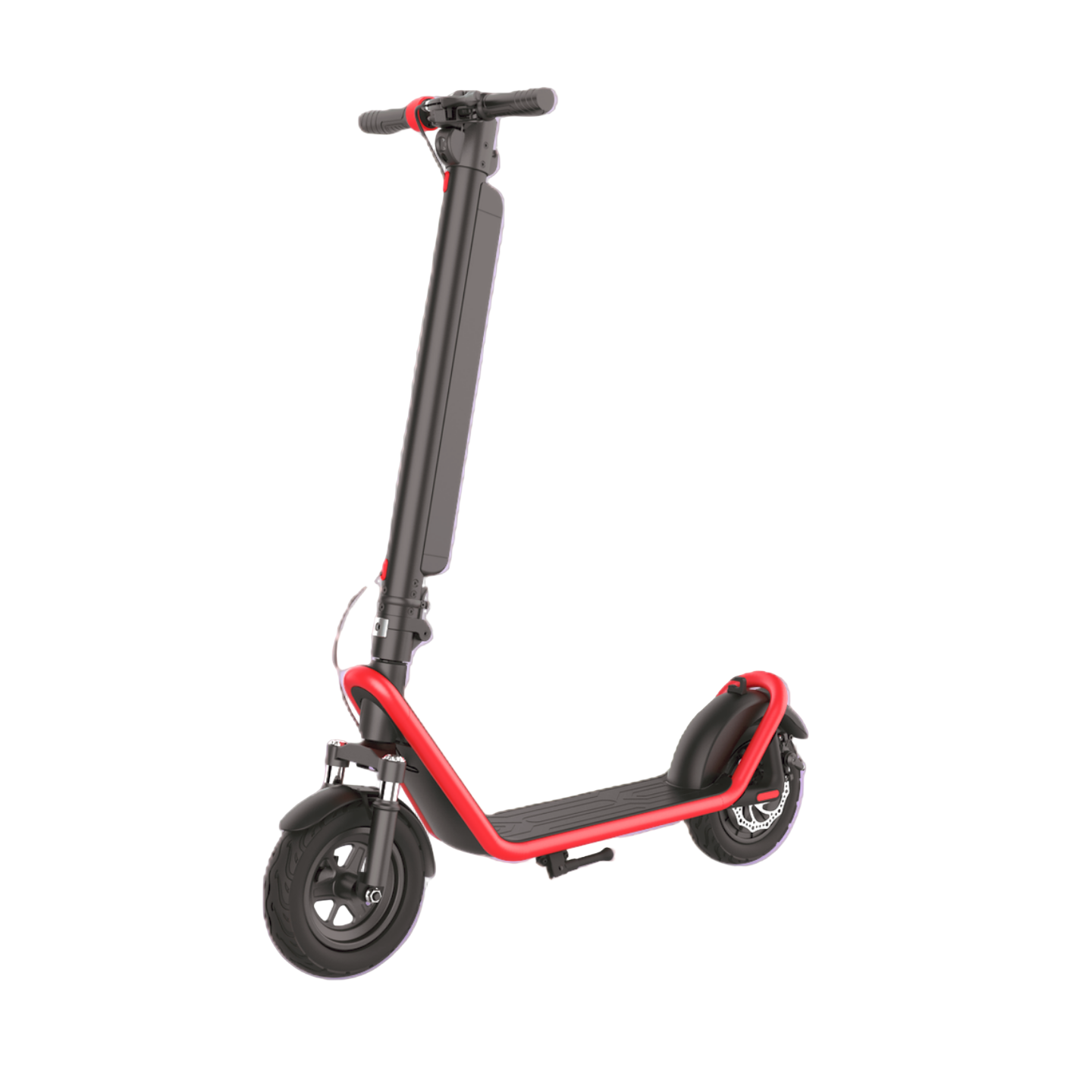

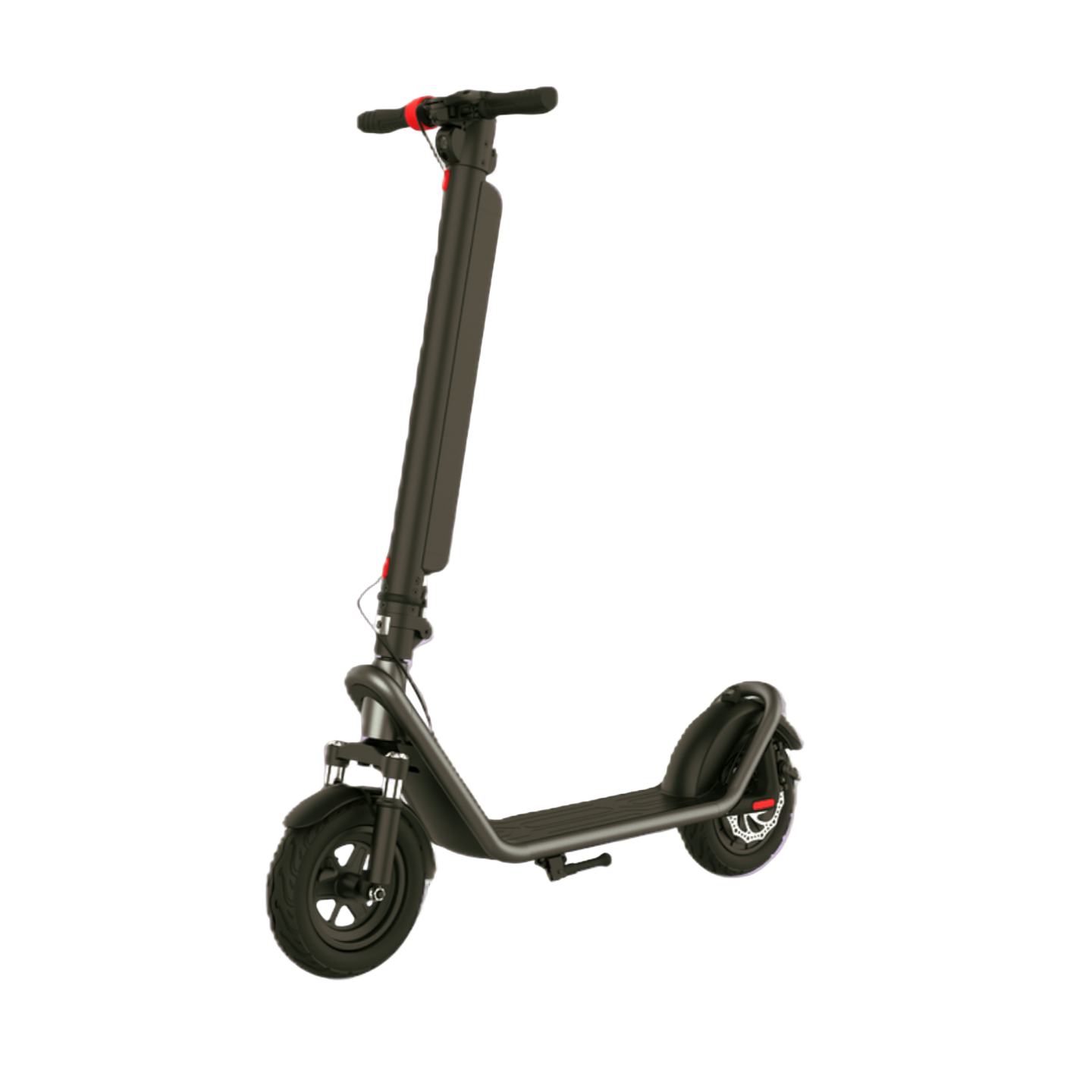

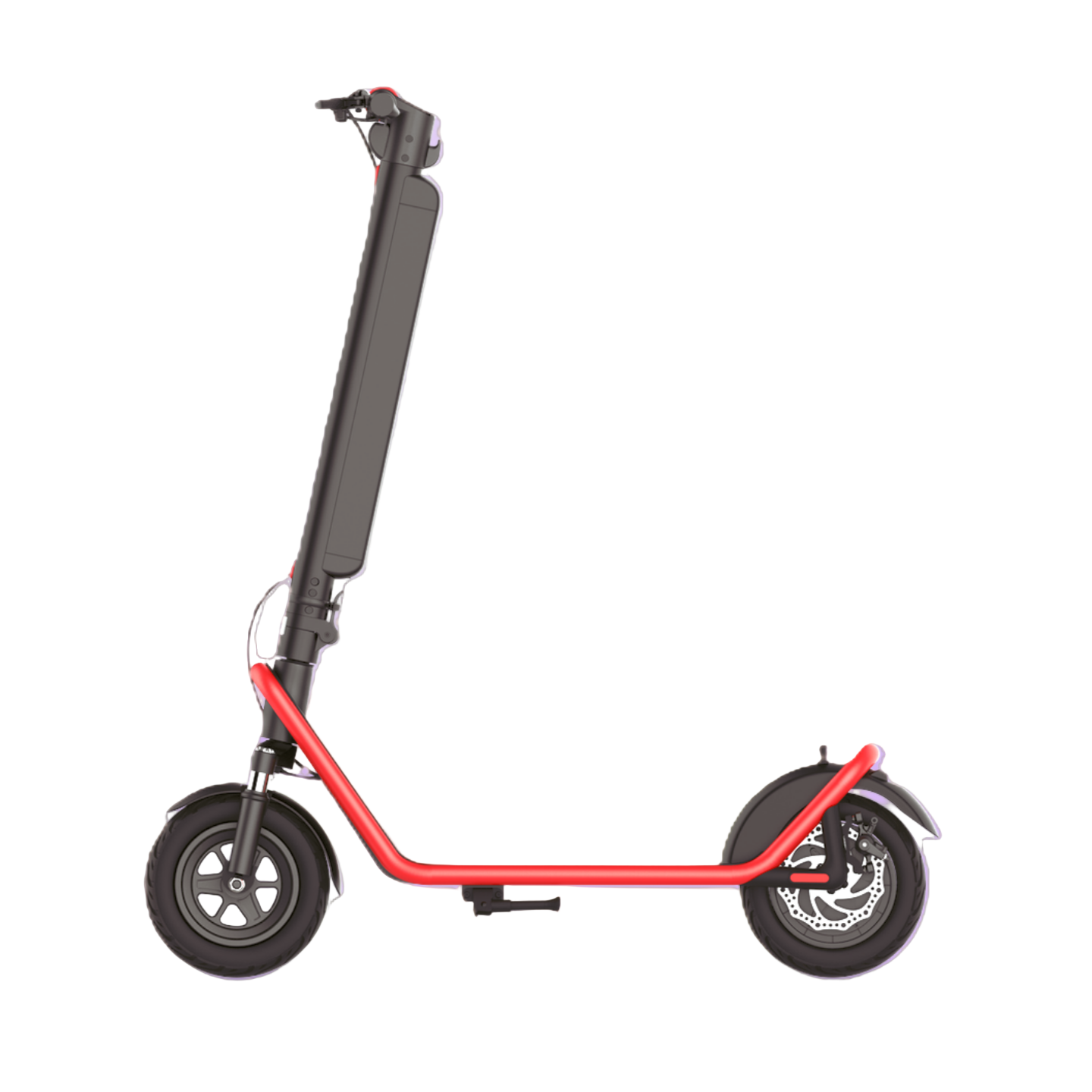

X11 Electric Scooter

📊 Specifications

Battery & Motor

• Battery: 36V / 13Ah Automotive-grade Lithium (Removable, Embedded)
• Motor: 450W Brushless Rear-Wheel Drive
• Max Power Output: ~600W
• Max Speed: 25 km/h
• Max Range: 40–50 km (varies with load & terrain)
• Climbing Angle: 20°
• Charging Time: 5–7 hours
• Charger: DC 42V / 2A
• Input Voltage: 100–240V AC, 50/60Hz
• Battery Protections:
  • Short-circuit
  • Over-current
  • Double Over-charge
  • Double Over-discharge
  • Temperature Monitoring
  • Undervoltage

Build & Frame

• Frame Material: Aluminium Alloy (Lightweight, Strong, Wear-resistant)
• Pedal Width: 175 mm (wider than X8 for added comfort)
• Ground Clearance:
  • Pedal: 160 mm
  • Chassis: 135 mm
• Tyres: 10" × 2.7" Tubeless (Anti-skid, Anti-puncture, Explosion-proof)
• Suspension: Spring Suspension + U-Shaped Pedal Support
• Net Weight: ~14 kg
• Max Load: 100 kg

Controls & Display

• LED Large-Screen Display: Speed, Battery, Gear Switching
• Controller: WC Spring Device with Quick Release (elbow-mounted)
• Multi-function Button: Push-to-accelerate waterproof shifter dial

Safety & Lighting

• Braking: Ventilated Disc Brake + E-ABS Anti-lock System
• Headlight: High-Brightness LED
• Taillight: Integrated Rear LED Warning Light
• Waterproof Rating: IPX4

Dimensions

• Open Size: 1130 × 410 × 1260 mm

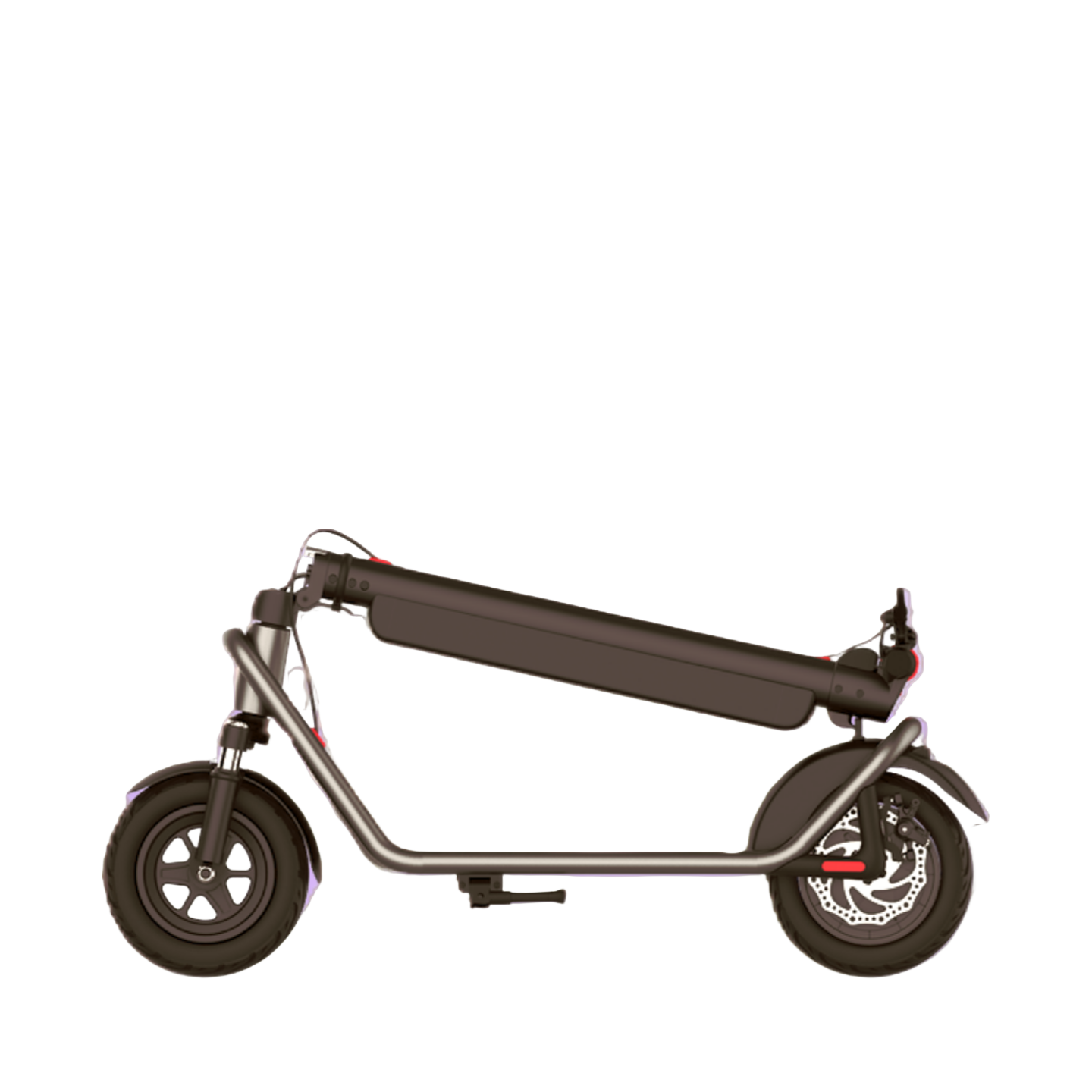

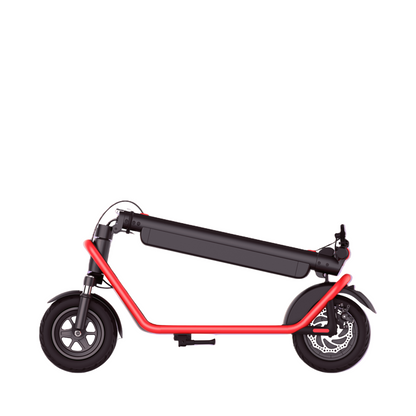

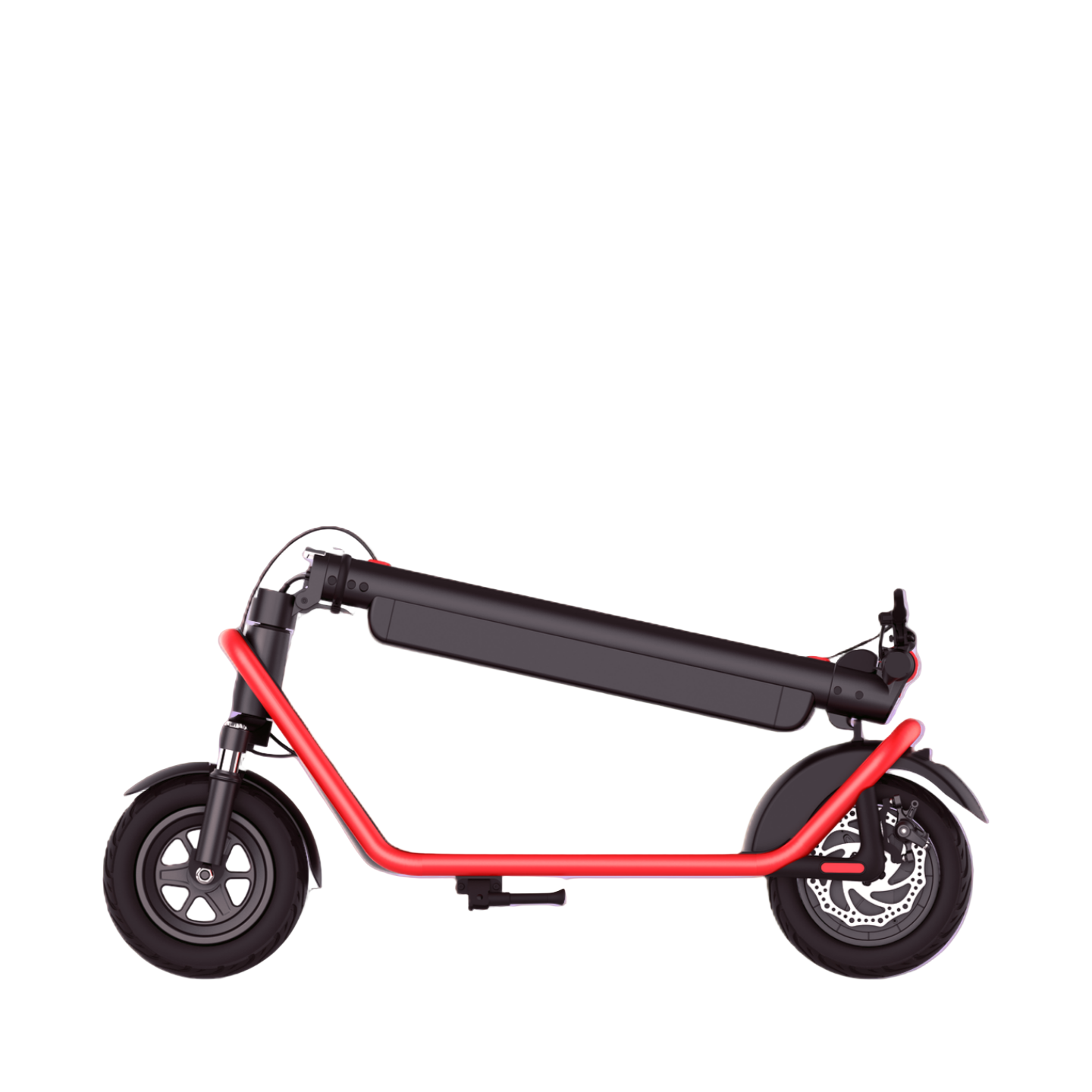

• Folded Size: 1130 × 410 × 550 mm

 Available Colours

• Grey / Black / Red
